427W / 538 HP Crate EFI Engine For Hotrod / Replica
$20,395.00
This 427w “Street Beast” is the Biggest and Baddest of our Windsor Class engines. All reinforced 4bm block. Brute Torque with a classic Muscle car thump! Ideal setup for FFR MKIV or Coupe. All Forged internals. Hot Seller. Very wide power band. Fits in place of most 289,302,351w and 351c engine compartments. The Sniper EFI delivers clean and consistent starts and a very responsive throttle.
Click here to See Image Galary
- Description
- Technical Specs
- Fitment
- Get Customized Quote
- Reviews (0)
Description

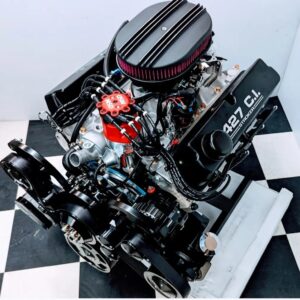

427W / 538 HP Crate EFI Engine For Hotrod / Kit Car Replicas
More aggressive Idle, ample Vacuum, Strong Torque + power range. Brand New Heavy Duty 4 Bolt Main Dart Block, not a “Performance Equivalent or Chinese aftermarket block. This Engine is and ideal setup for a FFR MKIV. A Direct replacement in most cases for a old 351w. All New Block , 4 bolt main. Roller Valvetrain. Large Runner Cylinder Heads Flow exceptionally better than the old Iron Heads. Classic Thump Idle sound. Will Replace most early 260, 289, 302, 351w, and late model Small Block Ford Engines. Pump Gas Friendly – 91 octane and up. ***Currently in Stock
Precision machined 351w new 4 bolt dart roller block
Eagle forged steel 4340 crankshaft
Steel h beam connecting rods with 190, 00 psi arp bolts
Mahle power forged pistons 10.5 to 1 compression
Perfect circle chrome moly piston rings
3 piece steel double roller style timing chain
Hyd roller xtreme energy camshaft huge torque
New melling oil pump and screen
Aluminum Performance Cylinder Heads. 60cc Combustion Chambers with Bronze Guides
2.05 stainless steel swirl polished intake valves
1.60 stainless steel swirl polished exhaust valves
Comp cams xtreme duty roller rockers
Hard seats for unleaded or regular fuel
Heavy duty 1.55 diameter valve springs, 7 degree locks
New heavy duty chrome moly push rods
New 7 quart large capacity low profile oil pan
Timing chain cover with scale
427 black wrinkled aluminum valve covers or Equiv.
Steel billet 157 tooth standard flywheel. (Works with 5 speed Trans.)
Edelbrock performer RPM Dual plane intake manifold or Equiv.
Sniper EFI 2 Fuel Injection. Includes Integral ECU, Harness and Sensors
Electronic billet distributor
Thermostat housing and 180 degree thermostat
High volume fuel pump
High flow aluminum water pump
Dip tube and dipstick
High Flow air cleaner with pcv ventilation system
Fuel lines and gas filter
Hot run tested includes setting initial and full timing advance
Video footage shown of your engine in test stand
Balanced, blue printed, assembled by ase technicians
- Siamesed Cylinders: Standard 4.125” cylinders. Extra-thick walls prevent cracking and produce excellent ring seals.
- Scalloped Water Jackets: Increase coolant flow around cylinder barrels to prevent detonation, extend engine life, and produce consistent cylinder temperatures.
- Steel Four-Bolt Main Bearing Caps: Sportsman Blocks have three 4-bolt center caps with splayed outer bolts for maximum strength, Race Blocks feature all five 4-bolt mains, rear cap uses a standard 1-piece seal.
- Stock Components: Provisions for stock motor mounts, accessory drives, smog pumps, starter brackets, oil pans, and pumps.
- Upgraded Oiling System: Has a complete stock-type system plus a low-tension priority main oiling system with front and rear external oil pump feeds.
- Dual Crossovers: Allow oil flow to be metered with restrictors for roller lifter cams and/or roller rocker arms to reduce oil flow and windage.
- Reinforced Head Bolt Bosses: Blind-tapped to prevent leaks and produce accurate torque readings. Extra-thick decks prevent head gasket leaks.
- Standard Camshaft and Cam Drive: Standard cam and cam drive can be used. Lifter Valley of Sportsman Blocks has provisions for the production of hydraulic roller lifters.
- Precision CNC Machining: Ensures consistent high quality and eliminates expensive ”blueprinting”.
- Sniper EFI 2 Throttle Body Fuel Injection. Includes Harness, Sensors.
- High volume Electric External fuel pump
- EFI fuel lines and gas filter
1965- 1973 FORD MUSTANG – Early and later model Ford Muscle Cars, FFR MKIV
Year Range | Make | Model |
1966-1973 | Ford | Mustang |
1979-1993 | Ford | Mustang |
1979-1993 | Factory Five | MKIV |
1979-1993 | Factory Five | Hot Rod |
1967-1973 | Mercury | Cougar |
1966-1977 | Ford | Bronco |
1963-1977 | Ford | F100 |
1963-1977 | Ford | FStreet Rod |
For more details and Add ons Please contact us.
